RIO xR3
Industrial strength remote I/O and IoT telemetry system with cellular and satellite connectivity. Evolved for extreme reliability in harsh environments.
IoT Telemetry & Remote Network Supervisory Module
RIO xR3
EVOLVED.
Equal parts industrial strength remote I/O module — performing network supervisory functions — and IoT telemetry system with cellular and satellite connectivity.
Equipped with highly integrated multi-processor cores, the xR3 delivers optimal performance for every job. Light weight, compact, powerful, yet energy-efficient.
POWERFUL.
Multi-processor cores deliver optimal performance. Run off local DC supply or AC/mains. On-board backup battery and intelligent charger allow operations even in challenging conditions — alarms will make it through even if power goes out.
VERSATILE.
More than 25 years of experience poured into the design. Performs alarms supervision, automation control and environmental monitoring while gathering data from all your MODBUS devices. Integrated OneWire bus supports up to 8 Optima enviroSENSORS.
MULTI-PROTOCOL.
Supports mDNS, MQTT, eMail, SNMPv1-3, MODBUS RTU, Modbus over TCP/IP, and Alarms Uplink. Effortlessly converts between protocols, taking the hassle out of translating data points and streaming telemetry to the cloud.
HYBRID INPUTS.
Software switchable to be either discrete contact or analog inputs — individually, with custom thresholds. Ultra-wide -60Vdc to +60Vdc operating range. Never run out of the type of I/O you need most.
OPTIMA AT HEART.
Rich set of SNMP capabilities makes integration easy. Compatible with Remote Commander Client (RCC) and Remote Commander Server (RCS) for unified management of all your Optima devices.
CONNECTIVITY3
Extended Reach to the power of 3. Deploy at the source, next to existing equipment. Choose your connectivity: LAN/SFP for Ethernet sites, Cellular (LTE-M/NB-IoT) for remote locations, or Satellite for the most extreme deployments.

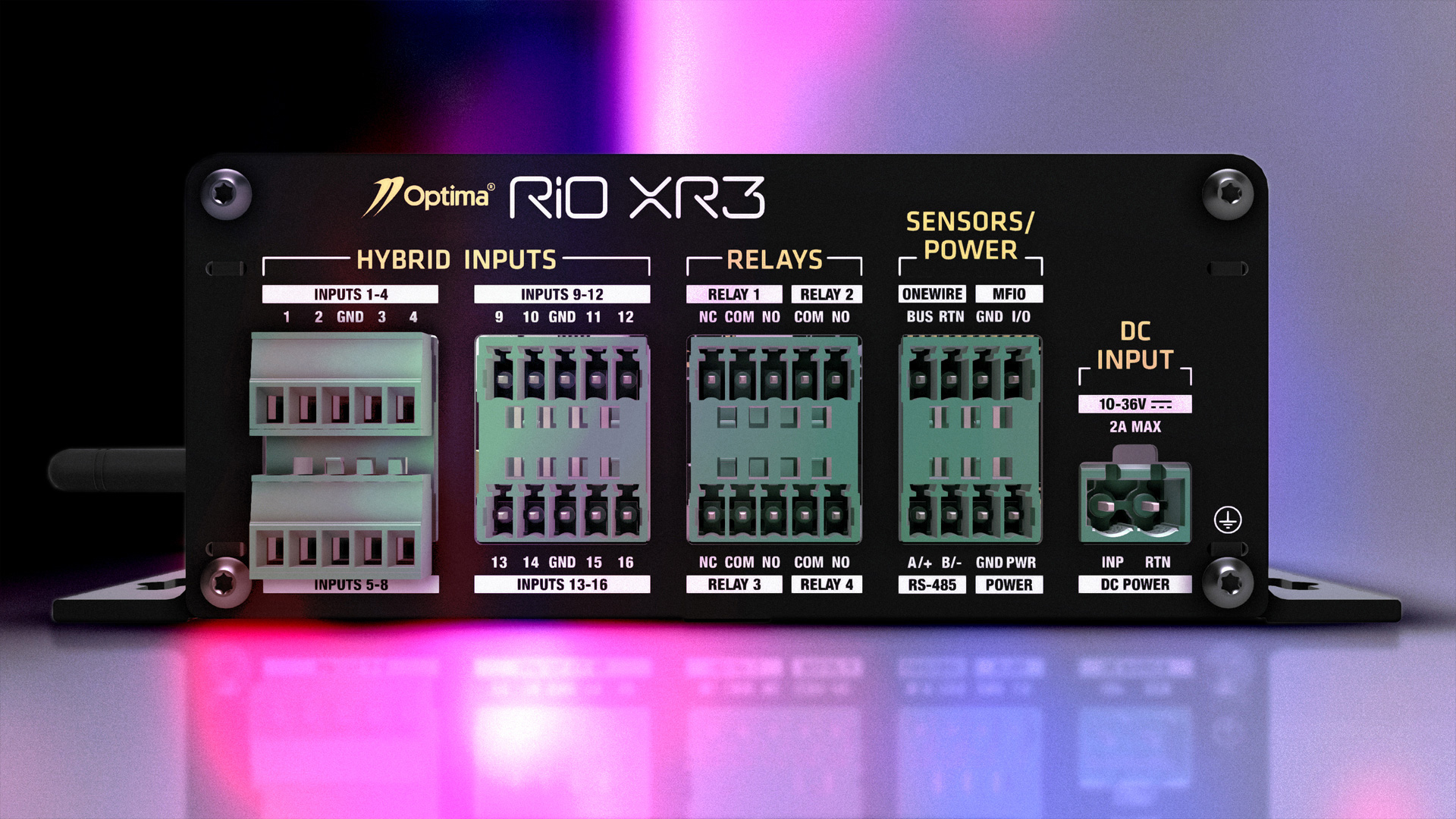

I/O AT-A-GLANCE
Everything you need to monitor, control, and connect — in one compact unit.
INPUTS
- • 16× Hybrid: ±60Vdc range, 1mV resolution
- • 1× Current Loop: 0-25mA (0.4µA res.)
- • 1× Frequency/Pulse Counter: up to 2kHz
OUTPUTS
- • 4× Latching Relays: 220Vdc/250Vac, 2A
- • 1× Low Power Digital Output
- • 1× Audible Buzzer
INTERFACES
- • 1× MODBUS RS-485 (8 devices)
- • 1× OneWire (8 sensors)
- • WiFi 802.11b/g/n + Cellular LTE-M
REACH FAR-OFF PLACES
Small IoT telemetry and alarm handling units you can deploy everywhere. Right at the source, next to your existing equipment or sensors. Pick the best connectivity option available:
LAN / SFP
For those busy places where you already have Ethernet/fiber connectivity.
CELLULAR
For sites a bit off the beaten track, covered by either LTE-M or NB-IoT.
SATELLITE
For even the most remote site. Uses Optima's advanced ALARMS UPLINK protocol to preserve bandwidth and stay within budget.
INTERFACE PANEL
All connectivity options are easily accessible on the rear panel. The modular design includes dedicated ports for Ethernet (RJ45), SFP fiber connections, WiFi antenna, cellular modem, and satellite connectivity.
- ▸ Ethernet: 10/100/1000Base-T with RJ45 connector
- ▸ SFP Port: 100Base-FX or 1000Base-X fiber connectivity
- ▸ WiFi: IEEE 802.11b/g/n with external antenna
- ▸ Cellular: LTE-M / NB-IoT module slot
- ▸ Satellite: External modem connection
Rear panel showing all connectivity interfaces
Certified & Ready To Go: Our cellular options remove many common obstacles associated with IoT cellular roll-outs. RIO xR3 ships ready to connect.
TECHNICAL SPECIFICATIONS
Part Number Build
| Category | Code | Description |
|---|---|---|
| TYPE | 1017-A | RIO xR3 |
| MODEL | 1 | Model 100 (MODBUS device only, no LCD) |
| 2 | Model 200 (fully featured, no LCD) | |
| 3 | Model 300 (fully featured + touch-screen LCD) | |
| POWER | 0* | 24VDC nominal (Range: 10 to 36Vdc, max. 2A) |
| 1* | -48VDC nominal (Range: -30 to -60Vdc, max. 1.5A) | |
| 2 | 48VDC nominal (Range: 18 to 60Vdc, max. 2A) | |
| BATTERY | 0 | not installed |
| 1 | 25.7 Wh Backup Battery & Charger | |
| 2 | 37.2 Wh Backup Battery & Charger |
* Available only for Rev.1A models. Use the part number diagram above to build your specific configuration.
Physical
- Dimensions:
- 150.4 mm × 133.2 mm × 52 mm
(5.92" × 5.24" × 2.05") - Weight:
- 550 g
- Mounting:
- Tabletop, shelf, and wall mounting
Environmental
- Temperature:
- -40 °C to +65 °C
(-40 °F to +150 °F) - Humidity:
- Up to 80% relative humidity (non-condensing)
Power
- DC Input:
- 48VDC nominal (± or –)
Range: 18-60Vdc, max. 2A - Backup Battery:
- 25.7 Wh or 37.2 Wh Li-Ion
Up to 72h runtime - DC Output:
- 24Vdc, max. 420mA (10W)
DOCUMENTATION
RIO xR3-200 DATA SHEET
Comprehensive specifications for the Model 200, including battery backup and cellular options.
Download FileREADY TO MODERNIZE YOUR INFRASTRUCTURE?
Our engineers can help you specify the perfect RIO configuration for your specific network topology. Deployable in far-off places — ready to go.
