T:LAN
The all-in-one industrial networking toolbox. Multi-port Ethernet switch, console server, alarm aggregator, and optional T1/E1 CSU in one integrated platform.
LAN/WAN Interconnect System
THE ALL-IN-ONE
TOOLBOX

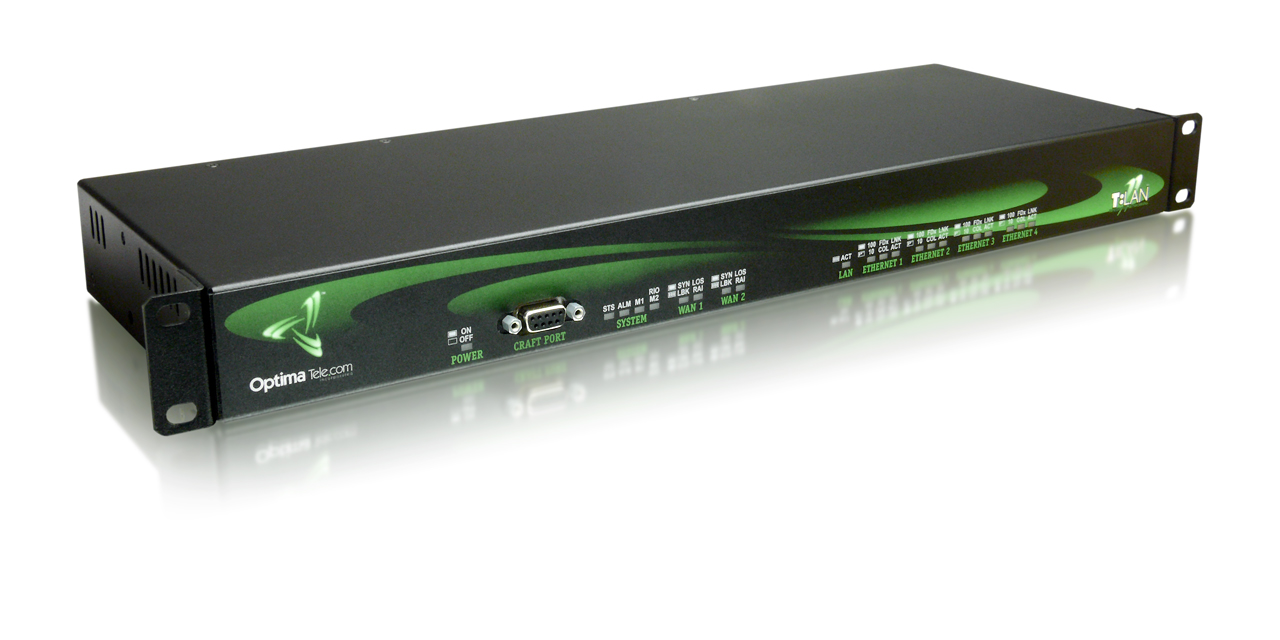

The T:LAN NetPro is a series of integrated networking products incorporating a multi-port Ethernet switch/router, alarm aggregator, console server, and optional T1/E1 CSU with mini-DACS.
An industry standard workhorse for remote LAN access, legacy communications, running apps, and managing alarms. Each unit comes ready-to-go out of the box.
TOP OF THE CLASS.
Optima's universal access platform is cost effective, scalable, and highly reliable. An industry standard workhorse for remote LAN access, legacy communications, running apps, and managing alarms.
TRULY INTEGRATED.
Facilitates management and supervisory control of multi-vendor equipment throughout the network — in central offices, co-locations, substations, CEV's, cellular, microwave radio, and POP sites.
ELIMINATE TRUCK ROLLS.
Extends communication access to remote facilities. Streamlines network element management, improves surveillance, provides alarm back-haul, and speeds equipment provisioning.
CONSOLE SERVER.
Access equipment never designed for remote IP management. The built-in serial/terminal access server with Reverse-TELNET and SDCoIP technology helps you manage your network from anywhere.
FLEXIBLE TOPOLOGY.
Modern architecture with unique packet filtering ensures high throughput. Deploy in point-to-point, point-to-multipoint, linear networks, and path protected rings. Ethernet, T1/E1, or both.
GREEN DNA.
Monitor energy usage with time-of-day rules. Fine-tune GENSET operations, drive down diesel consumption, optimize HVAC, and monitor battery bank health. Turn your network greener.
I/O AT-A-GLANCE
The all-in-one toolbox — networking, console server, and alarm aggregator combined.
SENSORS
ALARM I/O
- • 32× On-board discrete inputs
- • Rich I/O mix (digital/analog)
- • 3× Relays + 3× Remote temp sensors
NETWORKING
- • 4-port 10/100BaseT Ethernet switch
- • VLAN support & packet filtering
- • Dual T1/E1 with mini-DACS
CONSOLE SERVER
- • 4× RS-232/485 serial ports (115.2k)
- • Reverse-TELNET & SDCoIP
- • VT-100 terminal emulation
ecoLOGIC® SCRIPT ENGINE
Push business intelligence to the network's edge. Collect and process information right at the source with Optima's integrated eco app environment. Supports MODBUS sensors and SNMP back-ends.
REPORT PERFORMANCE
Know what your network is doing at all times. Real-time visibility into network health.
COLLECT STATISTICS
Gather and log all your network metrics. Vital statistics collection and historical trending.
NETWORK PULSE
Collect and process network alarm and surveillance data. LinkGuard circuit monitoring.
SENSOR INPUTS
Process crucial environmental sensor data. Temperature, humidity, airflow, and more.
REMOTE CONTROL
Remotely manage 3rd party devices with confidence. Full equipment provisioning.
LOG EVERYTHING
Monitor legacy power, security, and transmission devices. Complete audit trailing.
CHOOSE ETHERNET, T1/E1, OR BOTH
No matter whether your network infrastructure is based on Ethernet or T1/E1/microwave radio, T:LAN provides the perfect fit.
- ▸ Ethernet: Multi-port 10/100BaseT switch with VLAN support
- ▸ T1/E1: Dual CSU interfaces with mini-DACS and path protection
- ▸ Serial: Multiple RS-232/485 ports for legacy equipment
- ▸ Modem: Optional V.92 dial-backup for emergency access
- ▸ Alarm I/O: Expandable with daisy-chained RIO modules

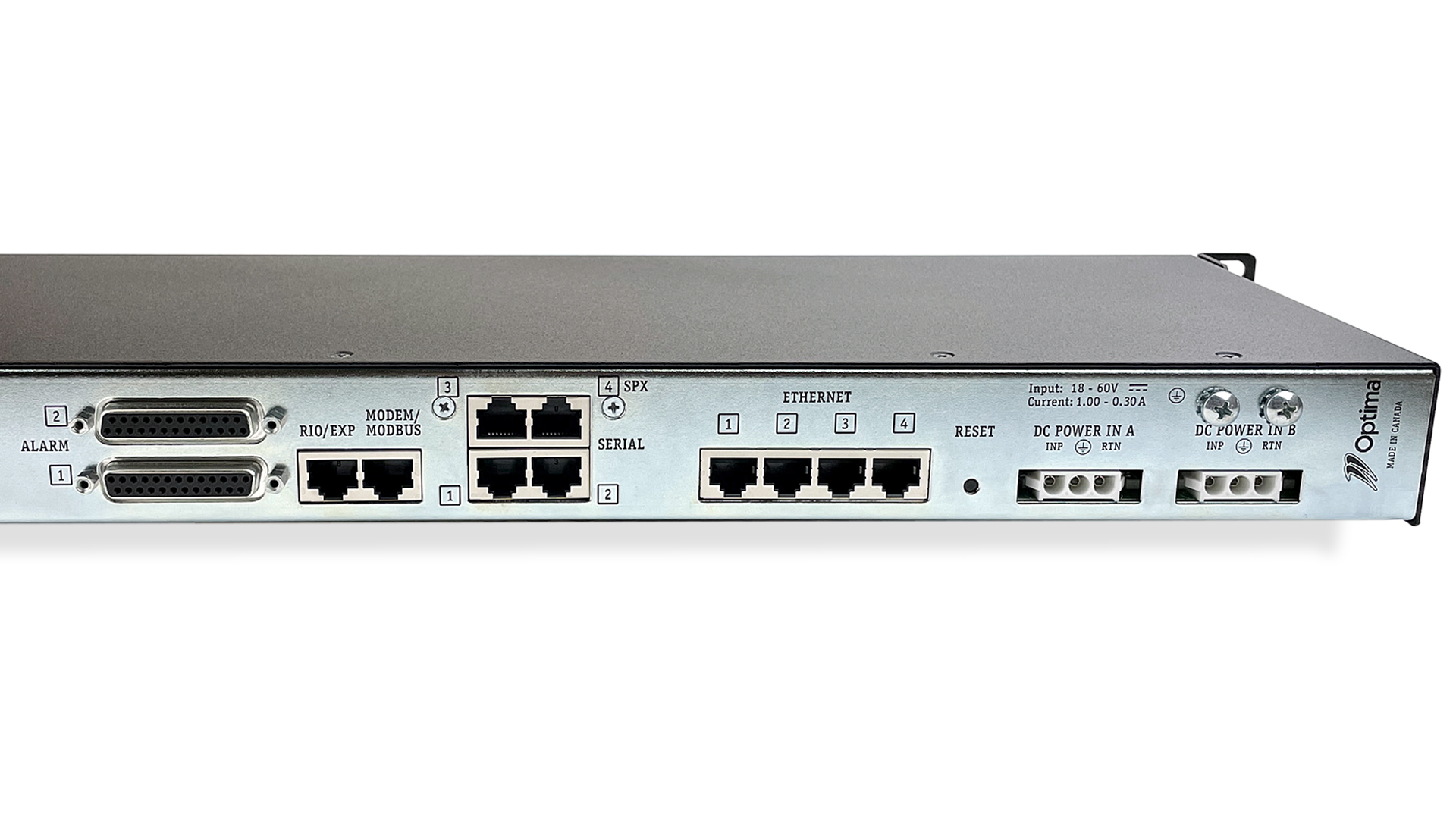

T:LAN NetPro eSeries back panel interfaces
TECHNICAL SPECIFICATIONS
3 relays, 3 sensors & more
ORDERING MATRIX
| Part Number | Description | Status |
|---|---|---|
| 1000-A030101F | Optima NetPro - LAN only | Active |
| 1000-A030102F | Optima NetPro - LAN only + MODBUS option | Active |
| 1000-A030106F | Optima NetPro - LAN only + Modem option | Active |
| 1000-A030101E | Optima NetPro - LAN only | EOP 2022 |
* EOP = End Of Production. Not recommended for new orders.
Safety & Regulatory
- UL:
- 60950 3rd Edition
- CSA:
- CAN/CSA-C22.2 No. 60950-00
- IEC:
- IEC 60950
- FCC:
- 47 CFR Part 15 & Part 68
- IC:
- CS-03
- CE:
- CE-Mark, EN 300-386, EN 55022
Environmental
- Temperature:
- -40°C to +65°C
(-40°F to +150°F) - Humidity:
- Up to 95% RH (non-condensing)
- Mounting:
- 19" rack, wall, or tabletop
Protocols
TCP/IP, UDP, DHCP, ICMP, TELNET, SNTP, SNMP (v1/v2c), MODBUS RTU and more
DOCUMENTATION
NETPRO eSERIES BROCHURE
Complete product brochure with specifications, features, and ordering information.
Download FileBACKED UP BY SOLID SUPPORT
At Optima we stand behind our products. We continue to support T:LAN installations globally. Speak with a specialist about your unique application or migration paths to NEXUS or RIO xR3.
