Monitor The World

High Accuracy Environmental Sensors

Optima’s enviroSENSOR™ OneWire digital sensors are a line of compact, easy to deploy environmental sensors.

Operating on a unique digital bus comprised of a single pair, it supports daisy chaining. This allows the installation of multiple sensors — even in demanding applications.

enviroSENSORS are compatible with a variety of Optima RTU controllers. They support alarming on one or multiple thresholds within their operating ranges.

Shop Now

Models

Tired of setting thermostats?

Automate Your Environment

Go Digital

Ditching flaky mercury switches has never been easier. Our sensors can automate environmental controls in remote sites. Reduce truck-rolls and time consuming site visits using enviroSENSORS — the smart, modern way to sense.

Thresholds & Alarms

Experience programming flexibility when combined with our controllers.

Logging & Reporting

enviroSENSORS make far-off, hidden events visible and manageable.

Daisy-Chaining

Wire in new sensors any time. No need to take existing ones off-line.

Digital Sensors

Digital technology means precision results every time.

Technical Specifications

Physical
  • Dimensions:

    17.75 mm x 36 mm x 51.30 mm
    0.699 ” x 1.417 ” x 2.02 “

  • Weight:

    13.5 g
    0.03 lbs

  • Mounting:

    Supports rack-mount, table top/shelf mounting, wall mounting

  • Housing:

    Black ABS

Power
  • Input:

    Parasitic Power Delivered Via OneWire Bus

Environmental
  • Temperature:

    -55 °C to +125 °C
    -67 °F to +257 °F
    (Measurement Range)

  • Humidity:

    Up to 80 % relative humidity
    (non-condensing, for operation only)

Connectivity
  • Protocol:

    OneWire with Parasitic Power

  • Connector:

    Removable 2 Position 3.5 mm Screw Terminal Plug

  • Wiring:

    22 to 24 AWG (0.33 mm2 to 0.20 mm2) CAT3 or CAT5 cable recommended

Compatibility
  • Controllers:

    Optima T:LAN, Optima RIO1608R8S4, Optima RIO xR3 and others

Technical Specifications

Ordering

Part Numbers

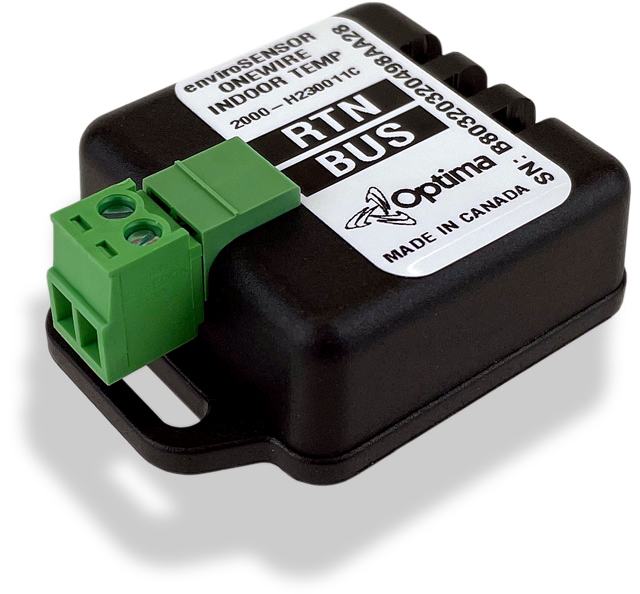

2000-H230011C Optima enviroSENSOR — Temperature/Indoor

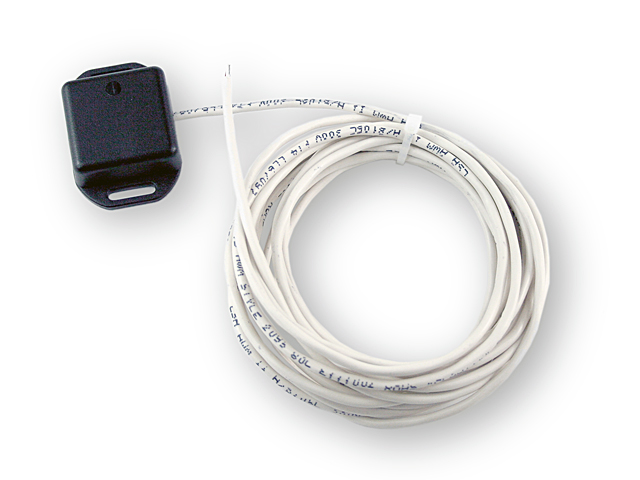

2000-H230012A Optima enviroSENSOR — Temperature/Outdoor

Documentation

    Specifications subject to change without prior written notice. All referenced trade names are either trademarks or registered trademarks of their respective companies.
